Welding Products

WELDER MIG - WIRE FEED ATTACHMENT

Code: 540145

The WELDER MIG - WIRE FEED ATTACHMENT is a construction wire feeder. Unit is powered across the arc meaning no control cables are needed. Comes in a fully enclosed case to protect against damage on the job site.

GET QUOTE / CHECK AVAILABILITY

PLANT COMPLIANCE

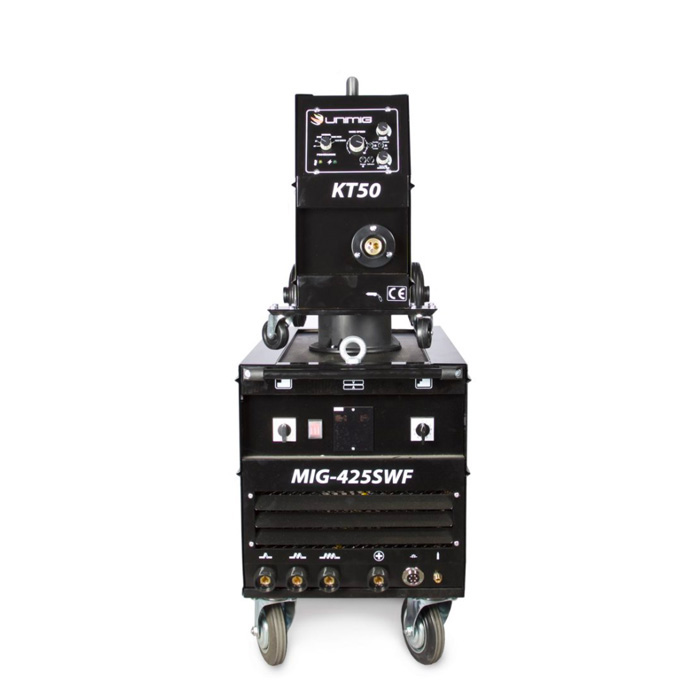

Make: UNIMIG

Model: 425SWF

Width: 940mm

Height: 600mm

Length: 1270mm

Dry Weight: 182kg

FEATURES SPECS

- Four wheel geared wire drive system
- Separate Wire Feeder
- 10 metre inter connecting cables
- Triple Inductance for exceptional arc control
- High strength steel construction
- Heavy duty copper wound transformer

Primary Input Voltage: 415V 3 Phase
Voltage Steps: 30
Duty Cycle 40 Deg C: 60% @ 400Amps / 100% @ 310Amps
Welding Voltage Range: 16 - 34V
Wire Size: 0.6 - 1.6mm Ferrous, 0.9 - 1.6mm Aluminium, 0.6 - 1.6mm Stainless Steel 0.9 - 2.4mm Flux Cored
Torch Options: SB38 4M & 5M / ARB 400 / 12ft / 15ft & 17ft TWC
Options: Amp-Volt Meter - Part No: AVOPTION

BROCHURE

OPERATING MANUAL

INSURANCE

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
