PUMP - DIAPHRAGM 50MM Print to PDF

Code: 370045
  1. PUMP - DIAPHRAGM  50MM - code:370045
  2. PUMP - DIAPHRAGM  50MM - code:370045
  3. PUMP - DIAPHRAGM  50MM - code:370045
  4. PUMP - DIAPHRAGM  50MM - code:370045

The PUMP - DIAPHRAGM  50MM can move almost anything that flows, it can handle the removal of liquids containing solids up to 45 mm, ideal for dewatering mud slurries and sumps.


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: WACKER
Model: PDI2A
Width: 457mm
Height: 589mm
Length: 996mm
Dry Weight: 59kg
Power: 2.6kW
- Safe to run dry: No damage is caused in ''snore mode'', i.e. running
intermittently due to lack of water
- Surge chamber at inlet absorbs pressure surges
- Oil bath lubrication constantly greases all parts of the transmission
system.
Diameter Suction and Discharge: 50mm

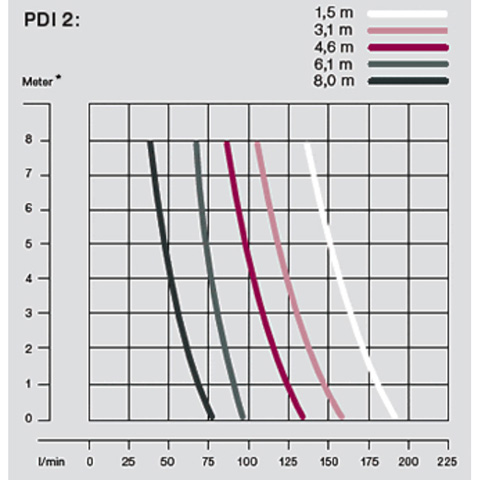

Discharge Head: 7.6m
Discharge capacity: 189l/min
Suction height lift: 7.6m
Solids diameter max. size: 38mm
Speed max: 3,600rpm
Operating speed: 2,800rpm
Runtime: 2.2h
OPERATING MANUAL
INSURANCE

A ute is suitable
Safety Boots Required

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
