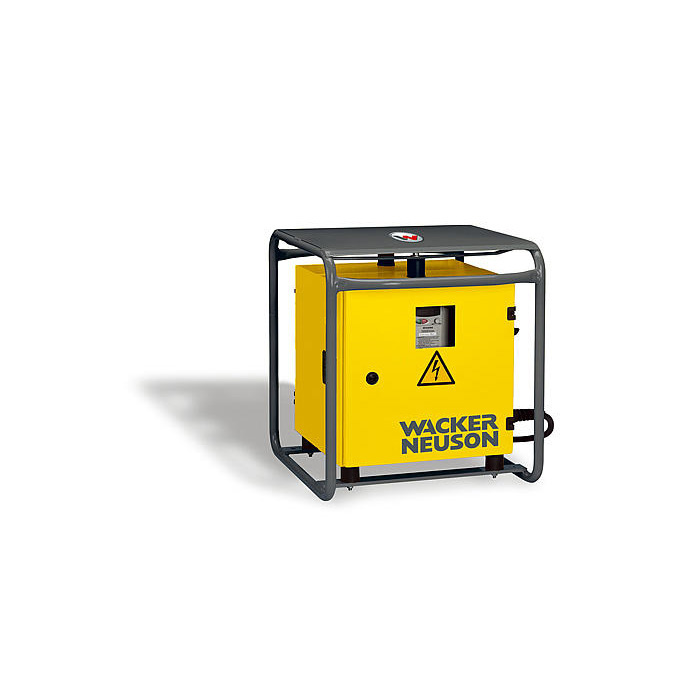

CONCRETE VIBRATOR - HF CONTROL BOX

Code: 180081

The CONCRETE VIBRATOR - HF CONTROL BOX are designed to have the concrete vibrators connected. This 240v powered control unit is a plug and play unit with safety cut out switches to prevent damage to the unit and vibrators.

GET QUOTE / CHECK AVAILABILITY

PLANT COMPLIANCE

Make: WACKER

Model: FUE 202

Width: 500mm

Height: 550m

Length: 580mm

Dry Weight: 87kg

FEATURES SPECS

- Long durability with years of outage-free service due to first-class quality and worldwide proven converter technology
- Trouble free running even at the current limit thanks to its intelligent output current monitoring
- Optional 3-channel radio for first-class operating comfort

Input Voltage: 400v
Output Voltage 3~: 250V
Input Frequency: 50-60Hz
Input Current: 24.5A
Output Current: 25A
Input Performance: 17kVA
Output Performance: 10.5kVA
