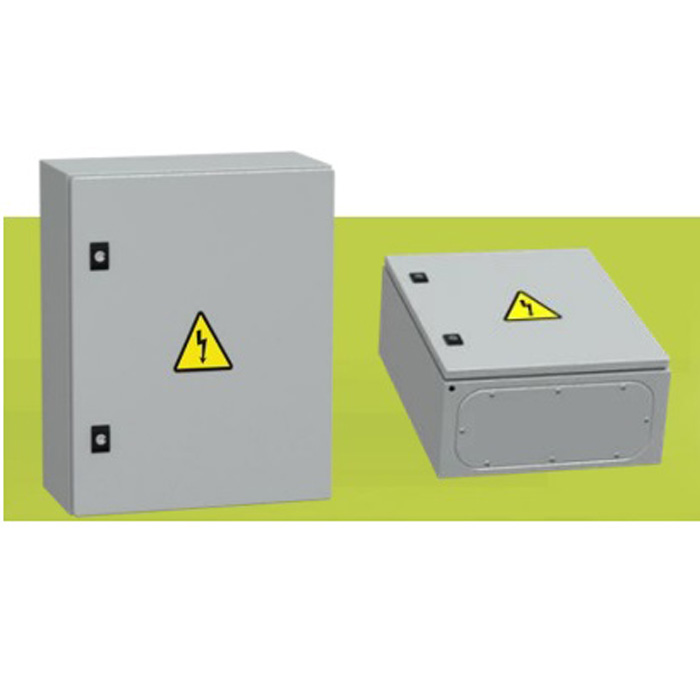

GENERATOR LOAD TRANSFER SWITCH - AUTO

Code: 350576

Pramac LTS load transfer switches are ideal for residential, commercial, light  industrial applications, and provide an efficient and cost-effective solution, for  both new constructions and service upgrades.  These LTS are specifically designed to operate with the air-cooled gas fueled  gensets equipped with the Evolution™ control.  The LTS switches the power source from your utility power to the standby  generator, so that the generator can provide temporary electrical power when the  utility source fails.  The LTS consists of a standalone cabinet, which may be installed separately from  the generating set, either indoor or outdoor.  High performing and reliable contactors are pre-installed within a durable, water,  dust and shock protected cabinet, ready to be easily and quickly connected to the  mains, the generator and the loads.

GET QUOTE / CHECK AVAILABILITY

PLANT COMPLIANCE

Make: PRMAC

Model: LOAD TRANSFER SWITCH

Width: 350mm

Height: 500mm

Length: 200mm

Dry Weight: 15kg

FEATURES SPECS

- Compact steel-made enclosure, suitable for outdoor installation, front door and double bar locking.
- Wall mounted, IP66 rated (''dust tight'' and protected against heavy seas or powerful jets of water), IK10 grade protection against impacts (20 joules),
epoxy-polyester powder coated.
- High performing and durable, mechanically interlocked, contactors.
- Capable of managing large voltage variations, offering reduced panel energy
consumptions and ensuring reliable operations in unstable networks.
- Built-in surge protection.
- Power terminal block. Screw connection to feedthrough terminals for Genset / - Mains / Load power cables.
- Enclosure gland plate, provides a removable cable egress and entry.
- Control terminal block with push-in connectors, and
feed-through terminals for the Genset control cables.

- Model No. : LTS-ACP GENSET - VOLTAGE RANGE 208-480V 50/60Hz -4P 100A
- Utility voltage Drop-out - < 65% Single Phase +/- 10% Three Phase
- Timer to Generator start - 10 Seconds factory set.
- Adjustable between 2-1.500 seconds
- Engine Warm-up delay - 5 Seconds
- Standby Voltage sensor - 65% for 5 seconds
- Utility Voltage Pickup - > 80%
- Re-Transfer Time delay - 15 Seconds
- Engine Cooldown Timer - 60 Seconds
- Exerciser Evolution  - TM 5 Minutes, adjustable as weekly, Bi-weekly, monthly
