- Best in class, Kubota 74,3HP engine, renowned worldwide for exceptional performance and reliability
- Standard with engine stall guard ensuring machine will not stall even in the toughest conditions

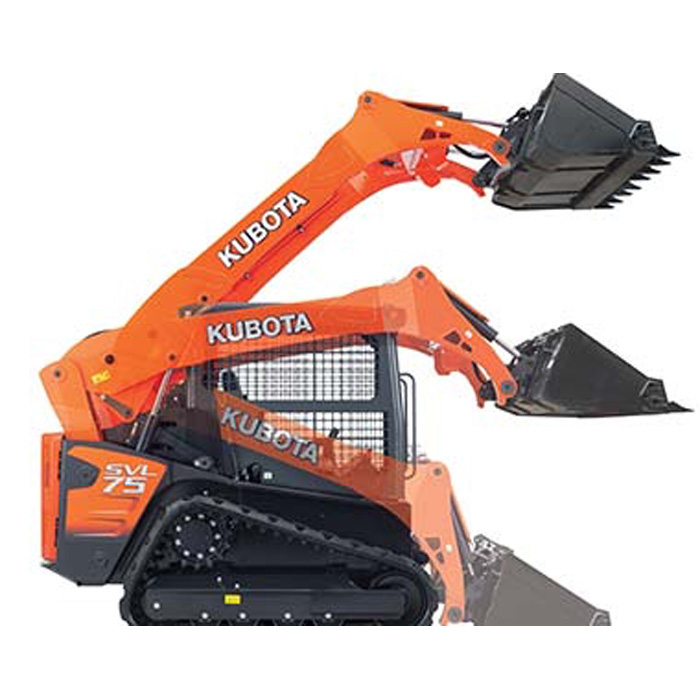

- Wide working range and unique vertical lift design delivers exceptionally long reach of 1060mm
- Self-levelling function keeps the bucket or forks in a horizontal position without having to manually adjust the angle while lifting the arm
Engine:
- Gross: 74.3 HP
- Displacement: 3331cc
- Cylinders: 4
Loader Performance:
- Rated operating capacity-35% tipping load: 1043kg
- Rated operating capacity-50% tipping load: 1490kg
- Tipping Load: 2980kg
- Breakout force (Bucket): 2814kg
- Breakout force (Lift arm): 2162kg
- Lifting capacity: 2214kg
Undercarriage:
- Track Width: 320mm
Hydraulic System:
- Loader hydraulic pressure: 250 kgf/cm2
- Pump capacity at attachment connection: 66l/min
