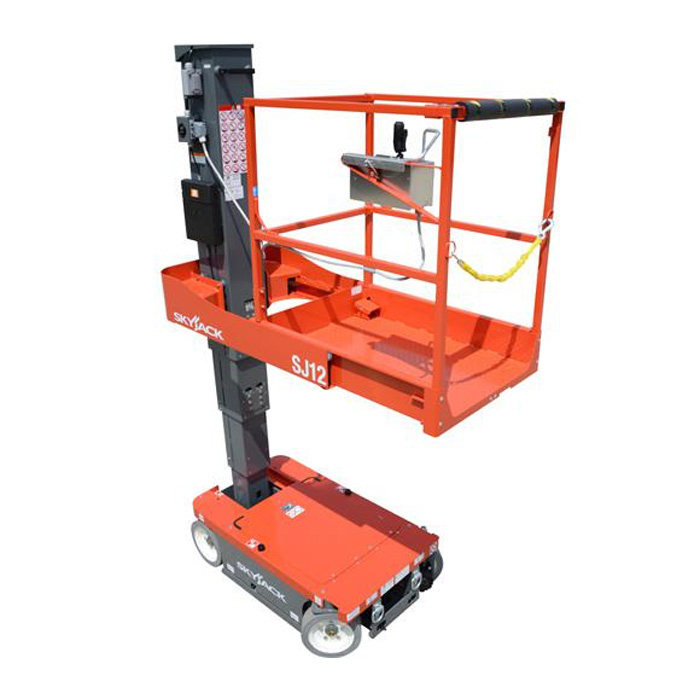

VERTICAL MANLIFT 3.7M SELF PROPELLED Print to PDF

Code: 100065
  1. VERTICAL MANLIFT 3.7M SELF PROPELLED - code:100065
  2. VERTICAL MANLIFT 3.7M SELF PROPELLED - code:100065
  3. VERTICAL MANLIFT 3.7M SELF PROPELLED - code:100065
  4. VERTICAL MANLIFT 3.7M SELF PROPELLED - code:100065
  5. VERTICAL MANLIFT 3.7M SELF PROPELLED - code:100065
  6. VERTICAL MANLIFT 3.7M SELF PROPELLED - code:100065
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

A suitable trailer is required
Safety Boots Required
Hard/safety hat



PLANT COMPLIANCE
A narrow width of 0.77m makes this self propelled telescopic mast lift a useful piece of equipment for those jobs that require manoeuvrability through tight spaces such as doorways and elevator shafts.

GET QUOTE / CHECK AVAILABILITY
Make: SKYJACK
Model: SJ12
Width: 0.77m
Height: 1.79 m
Length: 1.37m
Dry Weight: 782kg
Capacity: 227kg
Power: Battery
- Drivable at full height
- Variable speed, front two wheel hydraulic drive
- Zero inside turning radius
- Dual holding brakes
- Proportional controls
- Ground Clearance:
- Stowed: 5.33cm
- Raised: 1.60cm
- Gradeability 30%
- Turning Radius:
- Inside: 0
- Outside: 1.40m
- Lift time (With rated load): 16 sec
- Lower time ( With rated load): 14 sec
- Maximum Drive Height: Full height
- For working dimensions refer to image
DOWNLOAD BROCHURE
DOWNLOAD OPERATING MANUAL
RISK ASSESSMENT
