VERTICAL MANLIFT 9.7M (32') Print to PDF

Code: 100085
  1. VERTICAL MANLIFT 9.7M (32') - code:100085

The Snorkel UL32 is a robust push-around mast lift, safely lifts one person plus tools to a working height of 11.7m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system.    The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL32 is ideal for interior maintenance, particularly in sports hall, auditoriums and atriums


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: SNORKEL
Model: UL32DC
Width: 0.74m (stowed)
Height: 2.51m (stowed)
Length: 1.32m (stowed)
Dry Weight: 464kg
Capacity: 136kg
Power: DC Battery
- Special paint colors
- Tool tray
- Laser locator
- Environmental hydraulic oil

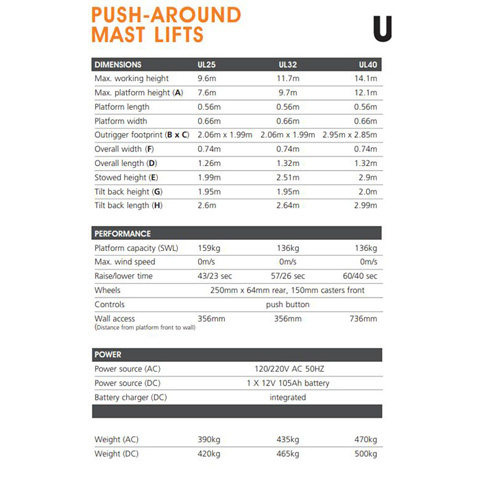

Max Working Height - 11.7m
Max. Platform Height - 9.7m
Platform Length - 0.56m
Platform Width - 0.66m
Outrigger Footprint - 2.06m x 1.99m
Overall Width - 0.74m
Overall Length - 1.32m
Stowed Height - 2.51m
Tilt Back Height - 1.95m
Tilt Back Length - 2.64m
Platform Capacity (SWL) - 136kg
Raise/Lower Time - 57/26 seconds
Wheels - 250mm x 64mm rear, 150mm castors front
Controls - push button
Wall Access - 356mm
Gross Weight (AC) - 435kg
Gross Weight (DC) - 465kg
BROCHURE
OPERATING MANUAL
RISK ASSESSMENT
INSURANCE

A truck is required
Safety Boots Required
Hard/safety hat

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
