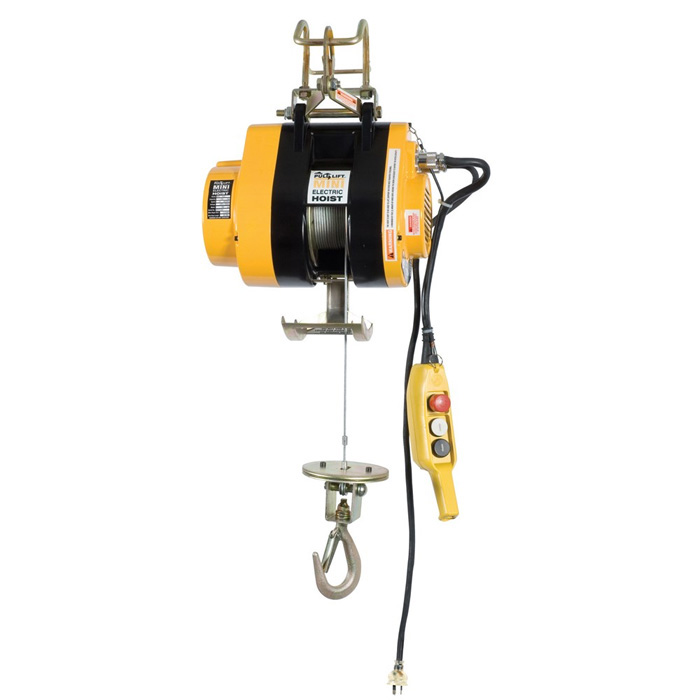

SCAFFOLD HOIST - 230KG Print to PDF

Code: 305805
  1. SCAFFOLD HOIST - 230KG - code:305805

The SCAFFOLD HOIST - 230KG allows for a safe and easy way to lift materials  to higher story levels


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: PACIFIC HOISTS
Model: CWS-230
Dry Weight: 26kg
- Automatic upper limit switch; when rope disc touches the limit arm, hoisting is automatically stopped.
- Dynamic and mechanical brake providing instant and safe braking.
- Convenient 240V / single phase power supply.
- Sensor arm automatically activates lower limit switch to stop motor if rope is under wound.
- Supplied with 3m power lead and industry plug & 10m heavy duty IP65 waterproof pendant control.
- Wire rope with 360º weighted hook with safety latch.
- Can be used with a jib arm extension
Rated Capacity: 230kg
Speed: 14m/min/ 50Hz
Motor Output: 1.3kW
Power Supply: 240V 1Ø 50Hz
Max. Height of lift: 24m
Wire Rope Dimension 5.0 x 25 Ø mmxm
OPERATING MANUAL
TEST CERTIFICATE
INSURANCE

A ute is suitable
Safety Boots Required
Hard/safety hat
Protective gloves

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
