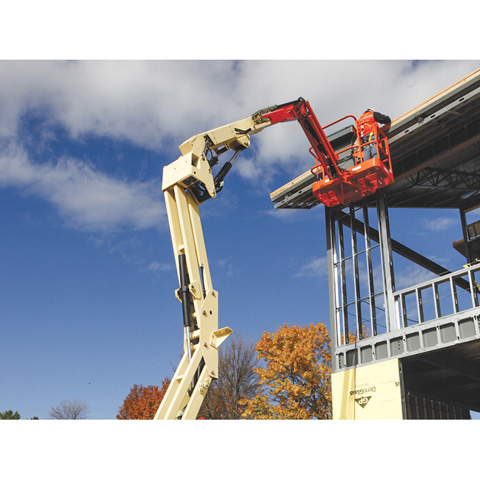

BOOM LIFT 10.2M (34FT) DIESEL 4WD Print to PDF

Code: 100005
  1. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  2. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  3. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  4. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  5. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  6. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  7. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
  8. BOOM LIFT 10.2M (34FT) DIESEL 4WD - code:100005
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

Safety Boots Required
Hard/safety hat
Work cover certificate
Safety Harness
A suitable truck is required



PLANT COMPLIANCE
A versatile boom lift with near vertical jib positioning. Features narrow access, proportional lift, swing and drive controls. This boom lift has a 10.33m maximum platform height ideal for 12.33 m working height 6ft (1.8 m) and a 6.71m maximum horizontal outreach.

GET QUOTE / CHECK AVAILABILITY
Make: JLG
Model: 340AJ
Width: 1.93m
Height: 2m
Length: 5.52m
Dry Weight: 4472 kg
Capacity: 230 kg
Power: Diesel Only
Fuel: D
- Best in class off-road performance
- Environmentally friendly machine with lower fuel consumption and fewer potential leaking points
- Robust gull-wing steel hoods protect 18.5Kw combustion engine
- Attractive entry level combustion boom lift with lowest weight in this class
- Platform Dimensions: 1.52m x 0.76m
- Platform Rotator: 180 Degrees Hydraulic
- Swing: 355 Degrees
- Gradeability: 45%
- Up and Over Clearance: 5.17m
- Jib: 1.22m
- Drive Speed: 4.98k/h
- Turning Radius:
- Outside: 3.96m
- Inside: 1.52m
- Diesel Engine: Kubota D1105
- Fuel Tank Capacity:49.2 L
- For working dimensions refer to image
