BOOMLIFT 20.3M (66FT) STRAIGHT 4WD Print to PDF

Code: 100050
  1. BOOMLIFT 20.3M (66FT) STRAIGHT 4WD - code:100050
  2. BOOMLIFT 20.3M (66FT) STRAIGHT 4WD - code:100050
  3. BOOMLIFT 20.3M (66FT) STRAIGHT 4WD - code:100050
  4. BOOMLIFT 20.3M (66FT) STRAIGHT 4WD - code:100050
  5. BOOMLIFT 20.3M (66FT) STRAIGHT 4WD - code:100050
  6. BOOMLIFT 20.3M (66FT) STRAIGHT 4WD - code:100050
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

A truck is required
Safety Boots Required
Hard/safety hat
Work cover certificate
Safety Harness



PLANT COMPLIANCE
This Telescopic boom lift allows for greater horizontal outreach  while maintaining smooth manoeuvrability. Perfect for areas  with limited access and far reach working areas. deep tread tyres allow for control, durability and speed around the jobsite.

GET QUOTE / CHECK AVAILABILITY
Make: SKYJACK
Model: SJ61/66 T
Width: 2.44m
Height: 2.57 m
Length: 10.34m
Dry Weight: 12800kg
Capacity: 227kg
Power: Diesel Only
Fuel: Diesel
- Axle based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating axle
- 360 degrees continuous turret rotation
- Drivable at full height
- 50% Gradeability
- Diesel engine
- Swing out engine tray
- Swing up cowlings
- Platform Dimensions 2.44m x 0.91m
- Gradeability: 50%
- Platform Rotation: 170 Degrees
- Drive Speed: 7.2km/h
- Turning Radius: Outside: 5.05m Inside: 2.82m
- Diesel Engine: 74 HP
- Fuel Tank Capacity: 170L

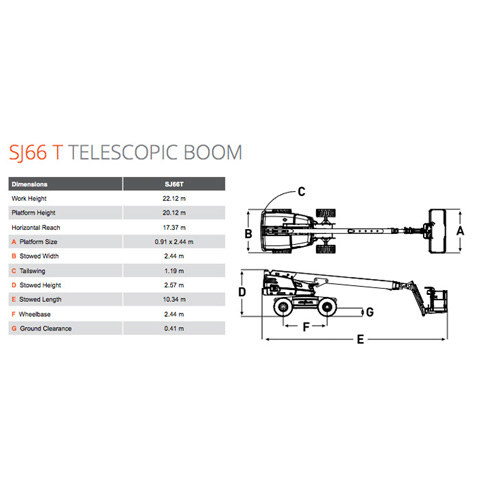

- For working dimensions refer to image
DOWNLOAD BROCHURE
DOWNLOAD OPERATING MANUAL
RISK ASSESSMENT
INSURANCE
