BOOMLIFT 18.0M (60FT) DIESEL 4WD Print to PDF

Code: 100045
  1. BOOMLIFT 18.0M (60FT) DIESEL 4WD - code:100045
  2. BOOMLIFT 18.0M (60FT) DIESEL 4WD - code:100045
  3. BOOMLIFT 18.0M (60FT) DIESEL 4WD - code:100045
  4. BOOMLIFT 18.0M (60FT) DIESEL 4WD - code:100045
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

Safety Boots Required
Hard/safety hat
Work cover certificate
Safety Harness
A suitable truck is required



PLANT COMPLIANCE
With a long reach and a larger work envelope this boom lift will  allow you to access those hard to reach places. Deep tread tyres   allow for durability and speed around uneven surfaces.

GET QUOTE / CHECK AVAILABILITY
Make: SKYJACK
Model: SJ63AJ
Width: 2.44m
Height: 2.54m
Length: 9.14m
Dry Weight: 9616kg
Capacity: 227kg
Power: Diesel Only
Fuel: D
- Axle based 4WD system
- Operator controlled locking rear differential and limited slip front differential
- Oscillating axle
- 360 degrees continuous turret rotation
- Drivable at full height
- 50% Gradeability
- Diesel or dual fuel engine
- Swing out engine tray
- Swing up cowlings
- Platform Dimensions 2.4m x 0.91m
- Gradeability: 45%
- Platform Rotation: 170 Degrees
- Up and Over Height: 8.38m
- Drive Speed: 7.3km/h
- Turning Radius:
- Outside: 5.31m
- Inside: 2.21m
- Diesel Engine: 74 HP
- Fuel Tank Capacity: 115L

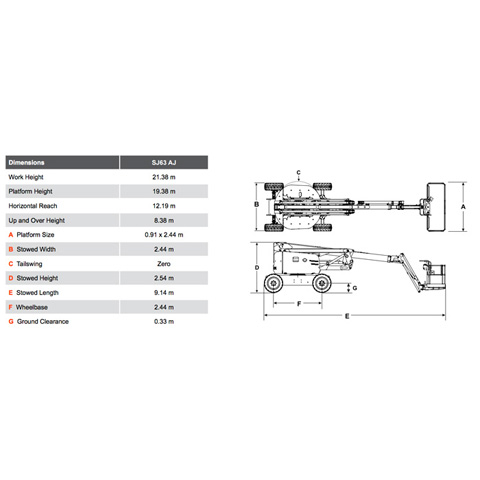

- For working dimensions refer to image
DOWNLOAD BROCHURE
DOWNLOAD OPERATING MANUAL
RISK ASSESSMENT
INSURANCE
