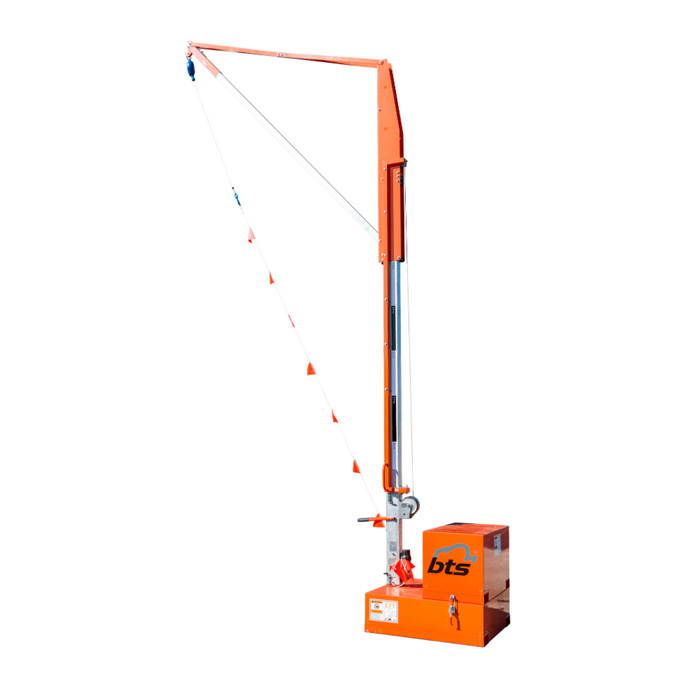

MINI RESTRICTED SPACE CUBE

Code: 400070

The MINI RESTRICTED SPACE CUBE provides sites with an overhead anchor point that can be moved around from application to application. It is ideal for situations where an overhead structure to attach an anchor point may not exist or is unreachable.

GET QUOTE / CHECK AVAILABILITY

PLANT COMPLIANCE

Make: BTSTECH

Height: 5.0m Min. 7.5m Max

Dry Weight: 2.7T

Capacity: Max 1 worker weighing no more than 136kg

FEATURES SPECS

- Lightweight powder coated & galvanized steel finish c/w internal concrete & steel counterweights
- Over height anchorage point for personal fall arrest systems
- Winch for raising and lowering vertical mast
- Counter-weighted base c/ integrated forklift tine pockets and pallet-jack pockets for ease of mobility
- Built in visual overload fall indicator
- Counter-weighted base has a footprint of 1.2mtrs
- Height adjustment of mast from 5.0mtrs to 7.5mtrs
- Off set mast of approx. 3.0mtrs from central vertical mast
- Tested, certified and meets Australian Standard requirements AS/NZS1891.4 & AS/NZS5532

Ultimate Strength Rating: 12 kN
Allowable MAF Rating for SRL's: 4 kN
Reach: 3m
Footprint: 1.2m x 1.2m
Anchorage Type: Limited Free Fall
