MINI EXCAVATOR 1.7T ZERO SWING Print to PDF

Code: 200005
  1. MINI EXCAVATOR 1.7T ZERO SWING - code:200005
  2. MINI EXCAVATOR 1.7T ZERO SWING - code:200005
  3. MINI EXCAVATOR 1.7T ZERO SWING - code:200005
  4. MINI EXCAVATOR 1.7T ZERO SWING - code:200005
  5. MINI EXCAVATOR 1.7T ZERO SWING - code:200005
  6. MINI EXCAVATOR 1.7T ZERO SWING - code:200005
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

A suitable trailer is required
Safety Boots Required
Hearing protection



PLANT COMPLIANCE

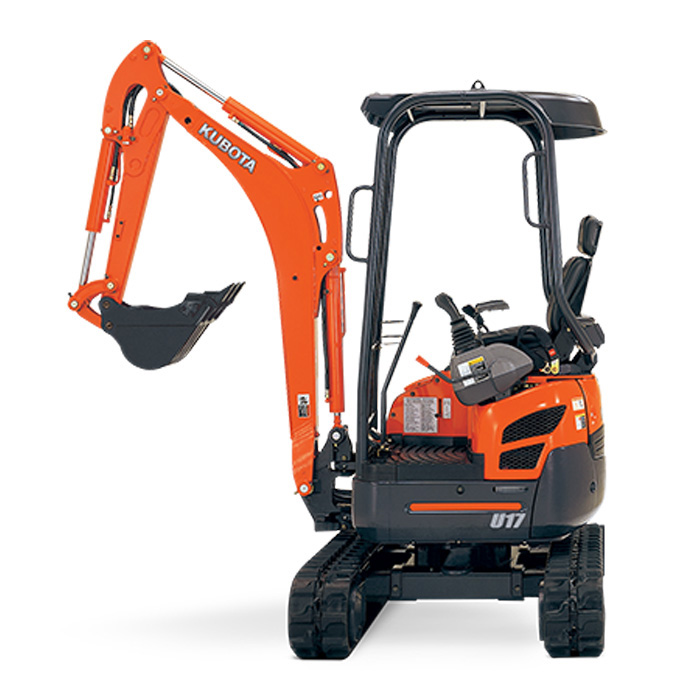

The MINI EXCAVATOR 1.7T ZERO SWING is the perfect machine for those tight areas. With a retractable track width of 1300mm to 990mm. This machine will give the confidence to know that the tail won't hit anything when swinging. This excavator will be able to do those trenches, footings, drainage excavations.

GET QUOTE / CHECK AVAILABILITY

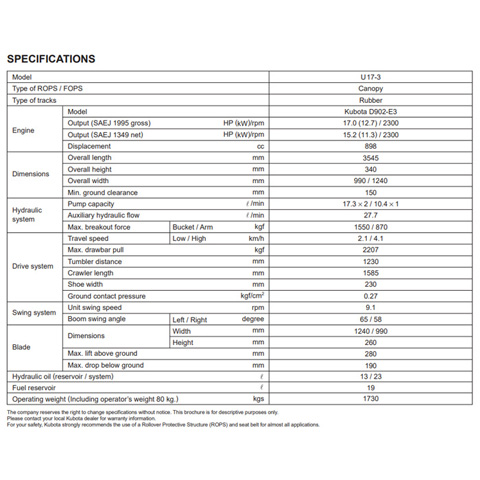

Make: KUBOTA
Model: U17-3

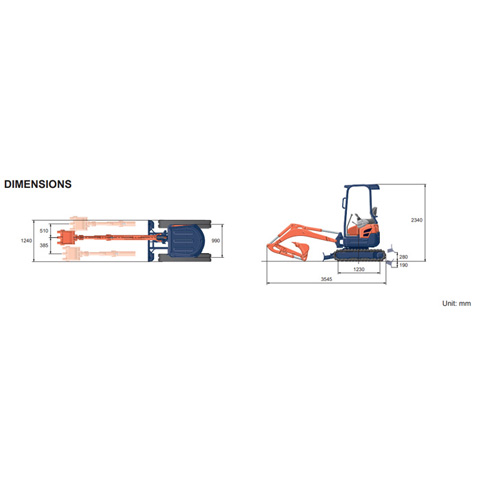

Width: 980mm
Height: 2340mm
Length: 3545mm
Dry Weight: 1650kg
Power: Output (SAEJ1997 gross)(KW/rpm): 12.7 / 2300 Output (SAEJ1349 net)(KW/rpm): 11.3 / 2300
Fuel: D
- Kubota D902 17 HP engine
- Powerful and well balanced
- Ergonomically designed seat to help reduce operator
  fatigue
Standard bucket sizes - 300mm, 450mm, 1m

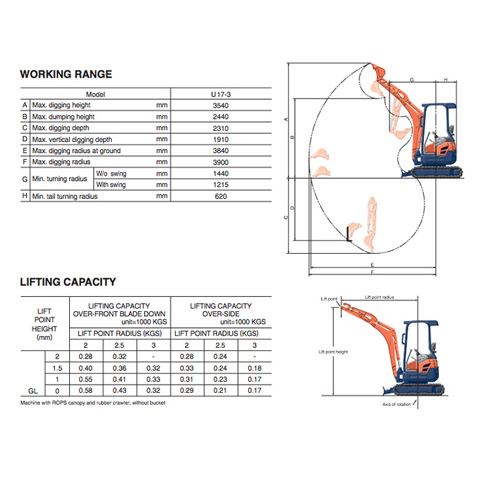

Max digging height: 3540mm
Max digging depth: 2310mm
Min tail turning radius: 620mm
Max breakout force Bucket/Arm:
1550kg / 870kg
DOWNLOAD BROCHURE
DOWNLOAD OPERATING MANUAL
RISK ASSESSMENT
INSURANCE

★★★★★
