CONCRETE KIBBLE - 1.0 CU.M Print to PDF

Code: 182010
  1. CONCRETE KIBBLE - 1.0 CU.M - code:182010
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

A truck is required
Safety Boots Required
Appropriate/suitable eye protection
Hearing protection
Hard/safety hat
Protective gloves



PLANT COMPLIANCE

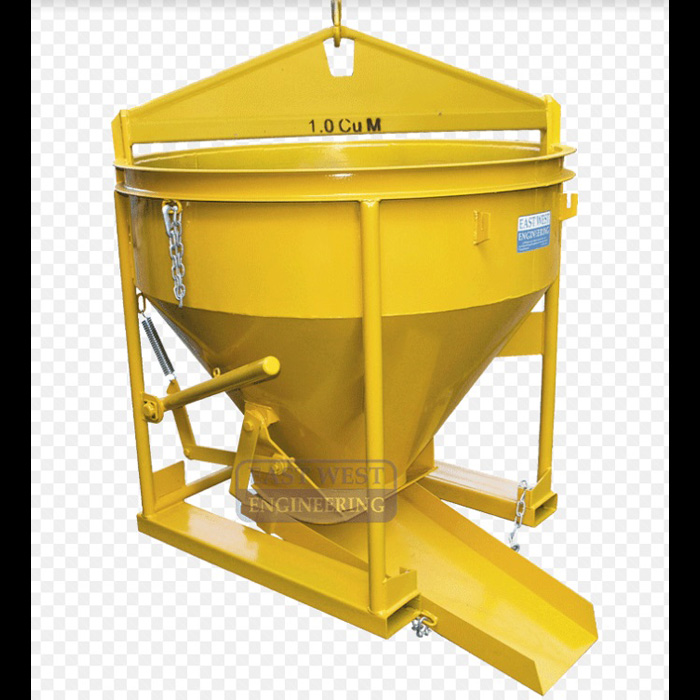

The CONCRETE KIBBLE - 1.0 CU.M is a heavy duty roll-over style   Kibble for use by overhead crane. This style Kibble is suitable for large applications having a Safe Working Load of 3000kg and a volume capacity of 1.0 cubic metres. Can be used for both bottom discharge or front discharge with the use of the adjustable chute.

GET QUOTE / CHECK AVAILABILITY
Make: EASTWEST
Model: CKM10
Width: 1358mm
Height: 1704mm
Length: 1444mm
Dry Weight: 320kg
Capacity: 1.0 cubicmetres
- Lightweight
- Durable
- Safe Working Load (SWL) 3000kg
- Volume Capacity 1.0 cubic metres
- Unit Weight 320kg
- Fork Pocket Size 165 x 65mm
- Fork Pocket Centres 870mm
- Painted Safety Yellow enamel
