GANTRY - ALUMINIUM 1.5T MAXI Print to PDF

Code: 304665
  1. GANTRY - ALUMINIUM 1.5T MAXI - code:304665
  2. GANTRY - ALUMINIUM 1.5T MAXI - code:304665
  3. GANTRY - ALUMINIUM 1.5T MAXI - code:304665
  4. GANTRY - ALUMINIUM 1.5T MAXI - code:304665
  5. GANTRY - ALUMINIUM 1.5T MAXI - code:304665
  6. GANTRY - ALUMINIUM 1.5T MAXI - code:304665

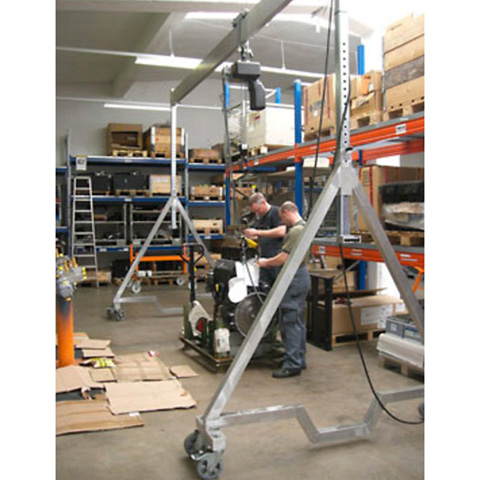

The GANTRY - ALUMINIUM 1.5T MAXI provides an optimal balance   between portability, ease of use and load bearing ability, providing the   user with maximum flexibility in meeting their lifting requirements.  Ideal for applications involving moving and lifting heavy loads, building  motors and driving appliances, repair and maintenance of pumps,  loading trucks and trailers on and off, and for use in workshops.


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: FELTES
Model: MAXI
Width: 2295mm
Height: 2180mm - 4000mm
Dry Weight: 113kg (excludes beam and trolley)
Operating Weight: Beam weight - 12.5kg for first metre, then 9.5kg/metre
Capacity: 1500kg
- Lightweight
- Disassembles to individual components
- Each leg foldable
- Beam lengths of 2M - 8M available
- Fully adjustable
- Includes girder trolley for lifting gear
- Bracket available to fix one end to wall
- Height to underside of beam: 2180mm - 4000mm
- Beam thickness inc trolley: 385mm
- 2m - 5m Beam capacity: 1500kg
- 6m Beam capacity: 1000kg
- 8m Beam capacity: 750kg
OPERATING MANUAL
RISK ASSESSMENT
TEST CERTIFICATE
INSURANCE

★★★★★

"Picked up a scaffold from the guys out at Blacktown, was easy to set up and had lots of space to work with."
Jenson Edwards - RANDWICK NSW 2031
Friday, June 09 2017





A truck is required
Safety Boots Required
Hard/safety hat
Protective gloves

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
