HYDRAULIC CYLINDER 50T / 159MM Print to PDF

Code: 307780
  1. HYDRAULIC CYLINDER  50T / 159MM - code:307780
  2. HYDRAULIC CYLINDER  50T / 159MM - code:307780

For various applications involved with lifting, pulling, pushing, bending,  load testing or clamping.


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: ENERPAC
Model: RC506
Dry Weight: 23.1kg
Capacity: 50T / 159mm

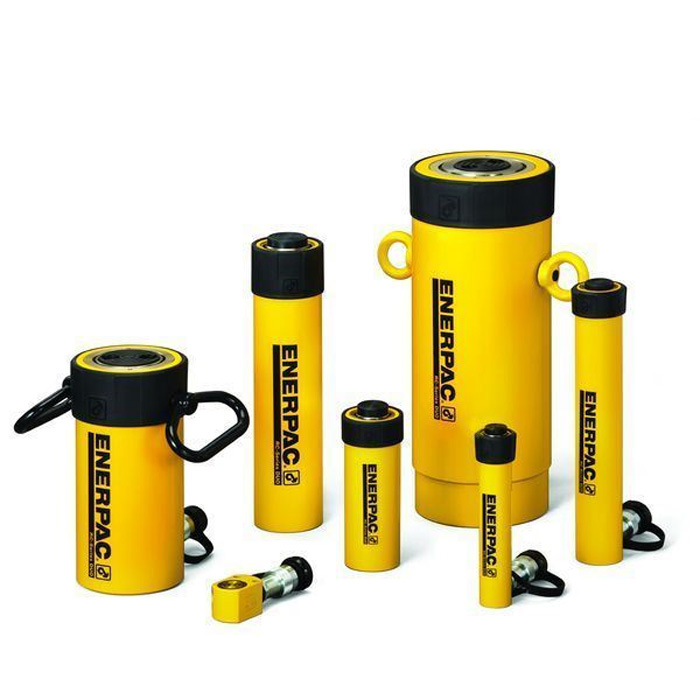

- Enerpac RC Series single acting hydraulic cylinders set the industry standard for general purpose cylinders.
- Unique GR2 Bearing Design, reduces wear, extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending cylinder life.
Cylinder Capacity: 71.2 ton
Stroke: 159mm
Cylinder Effective Area: 71.2cm2
Oil Capacity: 131cm3
Collapsed Height: 282mm
BROCHURE
OPERATING MANUAL
INSURANCE

A ute is suitable
Safety Boots Required
Protective gloves

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
