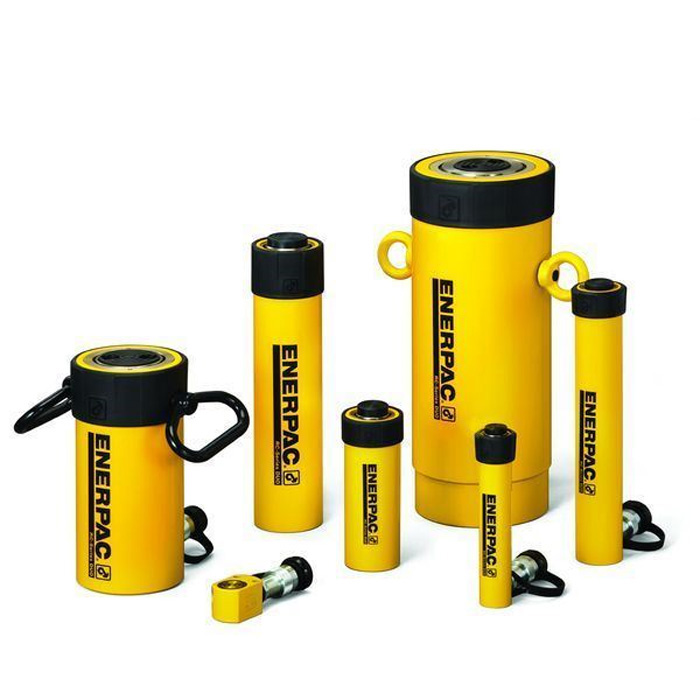

HYDRAULIC CYLINDER 25T / 158MM Print to PDF

Code: 307730
  1. HYDRAULIC CYLINDER  25T / 158MM - code:307730
  2. HYDRAULIC CYLINDER  25T / 158MM - code:307730

For various applications involved with lifting, pulling, pushing, bending,  load testing or clamping.


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: ENERPAC
Model: RC-256
Dry Weight: 10kg
Capacity: 25T / 158mm
- Enerpac RC Series single acting hydraulic cylinders set the industry standard for general purpose cylinders.
- Unique GR2 Bearing Design, reduces wear, extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing (on most models)
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life.
Cylinder Capacity: 25 (232) ton (kN)
Stroke: 158mm
Cylinder Effective Area: 33.2cm2
Oil Capacity: 525cm3
Collapsed Height: 273mm
INSURANCE

A ute is suitable
Safety Boots Required
Protective gloves

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
