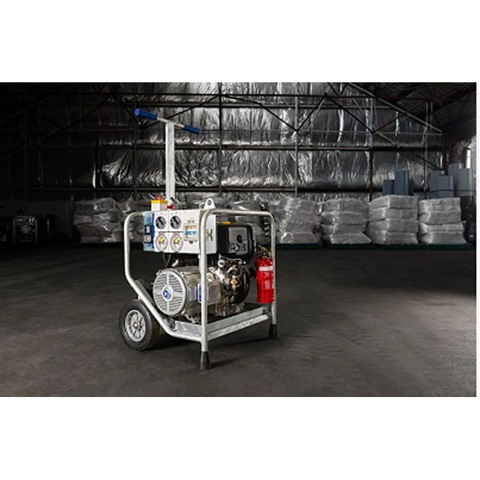

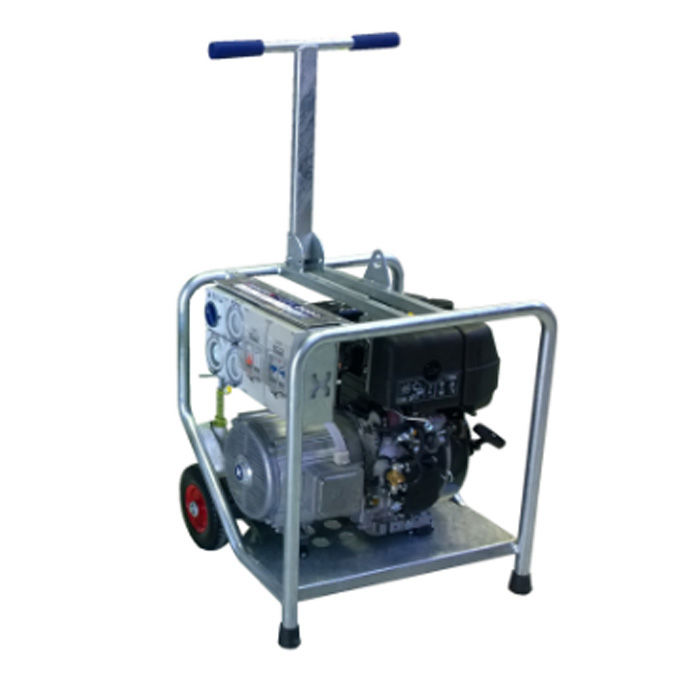

GENERATOR - 9 KVA DIESEL

Code: 350060

The GENERATOR -  9 KVA DIESEL is capable of providing power to equipment and tools,  floor grinding, welders, brick saws, air compressors and a wide range of applications. They are suitable for a wide range of sites.

GET QUOTE / CHECK AVAILABILITY

PLANT COMPLIANCE

Make: MAKINEX

Model: Generator 9kVA Diesel

Width: 645mm

Height: 1231mm

Length: 597mm

Dry Weight: 122kg

Capacity: 5 L

Power: 7600W

Fuel: Diesel

FEATURES SPECS

- 15% more power from the same engines
- 3 phase & single phase outlets
- Paralleling capacity

GENERATOR:
MAX OUTPUT 9kVA
FREQUENCY 50Hz
VOLTAGE 240V
RATED OUTPUT 6200W
MAX OUTPUT 7600W
SOCKETS
2 X 15A SINGLE PHASE SOCKETS WITH RCBO
PROTECTION
WEIGHT 122 kg
NOISE LEVEL (7M) NO LOAD - 78dB
50% LOAD - 80dB
100% LOAD - 82dB
RATED POWER
FACTOR 0.8
ENGINE:
TYPE SINGLE CYLINDER AIR COOLED DIESEL
MODEL KOHLER KD500
STARTING SYSTEM ELECTRIC/PULL START
DISPLACEMENT 505CC
NET. POWER 7.6 kW @ 3000 RPM
CONTINUOUS
POWER 6.2 Kw @ 3000 RPM
FUEL ECONOMY 2.7 L/h @ 50% LOAD
FUEL TANK 5 L

OPERATING MANUAL

INSURANCE

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
