SCISSORLIFT 7.7M (25FT) DIESEL Print to PDF

Code: 100235
  1. SCISSORLIFT  7.7M (25FT) DIESEL - code:100235
  2. SCISSORLIFT  7.7M (25FT) DIESEL - code:100235
  3. SCISSORLIFT  7.7M (25FT) DIESEL - code:100235
*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.

Safety Boots Required
Hard/safety hat
A suitable truck is required



PLANT COMPLIANCE

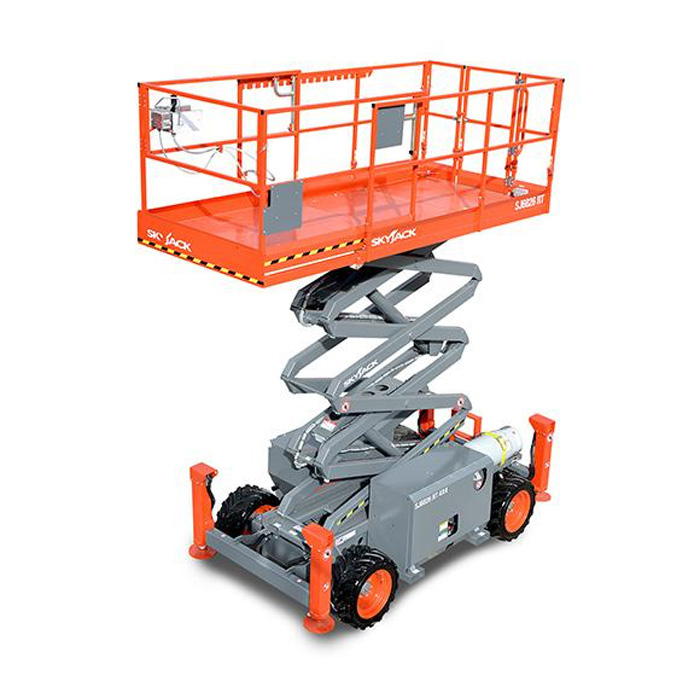

This self propelled scissor lift is applicable to off road and level surface operations. With its automatic stabilisers and deep tread tyres this elevated work platform provides great stability while working from  height.

GET QUOTE / CHECK AVAILABILITY
Make: SKYJACK
Model: SJ6826
Width: 1.76m
Height: 2.38m
Length: 2.72m
Dry Weight: 2903kg
Capacity: 567kg
Power: Diesel or Gas Propane
Fuel: D
- Crossover symmetrical 4WD
- Drivable at full height with roll out deck fully extended
- 1.5m Roll out extension deck
- 90 degree swing out engine tray
- Platform size 2.44m x 1.42m
- Extension deck: 1.52m
- Ground clearance: 0.20m
- Wheelbase: 2.04m
- Gradeability: 50%
- Turning radius
- Inside: 1.52m
- Outside: 3.96m
- Lift time: 35 sec
- Lower time: 35 sec
- Drive speed (stowed): 3.8km/h

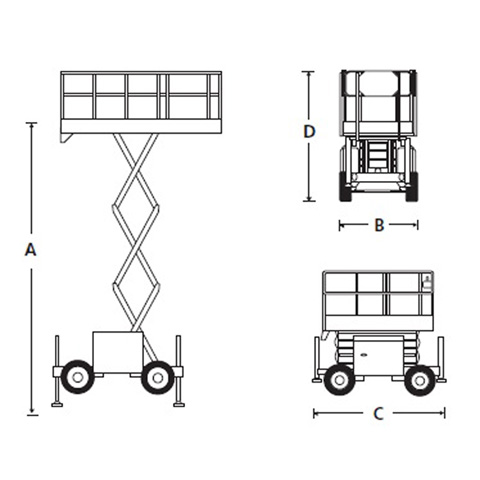

- For working dimensions refer to image
DOWNLOAD BROCHURE
DOWNLOAD OPERATING MANUAL
RISK ASSESSMENT
INSURANCE
