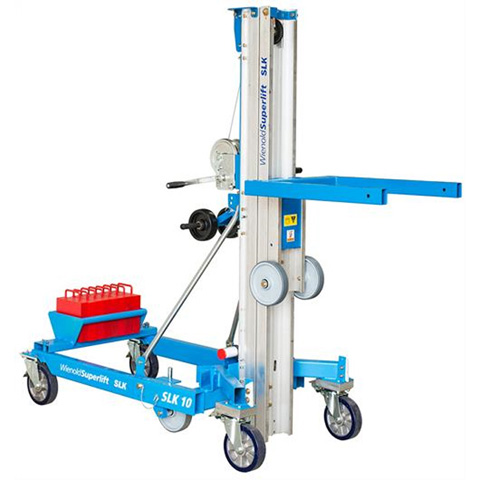

MATERIAL HOIST - 3.5M 450KG COUNTER WEIGHTED Print to PDF

Code: 305340
  1. MATERIAL HOIST - 3.5M 450KG COUNTER WEIGHTED - code:305340
  2. MATERIAL HOIST - 3.5M 450KG COUNTER WEIGHTED - code:305340

The MATERIAL HOIST - 3.5M 450KG COUNTER WEIGHTED are a great for a range of applications of lifting or holding heaving objects up in the air. Applications include: lifting beams,  air conditioners or moving heavy objects to elevated heights. The counter weight option allows you to get right up against  walls.


GET QUOTE / CHECK AVAILABILITY
PLANT COMPLIANCE

Make: WEINOLD
Model: SLK10
Width: 800mm (stowed)
Height: 2040mm (stowed)
Length: 900mm (stowed)
Dry Weight: 118kg (base weight)
Operating Weight: 246kg (inc weights)
Capacity: 450kg @ 360mm load centre
- Lift up to 450kg 3.5m high
- Counterweighted to be able to lift right up against walls
- Easy manoeuvrability with large nylon wheels
- Forks can be inverted to lift right up to ceiling height
Working Height:
- Standard forks - down: 3m
- Standard forks - up: 3.50m
- Boom: 3m
Working width: 800mm
Working length: 1500mm
Load Capacity:
- 46 cm load centre: 340kg
- 66 cm load centre: 225kg
- 107 cm load centre: 105kg
Ground clearance: 80mm
BROCHURE
OPERATING MANUAL
RISK ASSESSMENT
INSURANCE

A truck is required
Safety Boots Required
Hard/safety hat
Protective gloves

*Product availability may be subject to fluctuation
*EQUIPMENT shown may not necessarily be in stock and immediately available and specifications may vary between models. Pictures shown are for illustration purposes only.
